Product Image
Technical Data
Size:
16mm to 115mm & ½” to 4”
Standard:
BS 6121 Part-1:2005, EN 50262:1999, IEC62444:2010
Function:
Providing seal on outer sheaths of all types of unarmoured cable in indoor and outdoor area.
Ingress Protection:
IP66
Material:
Brass CW614N, Stainless Steel 316L
Thread:
Metric, NPT
Operating Temp.:
-60°C to +125°C
Cable Type:
Unarmoured Cable
Features:
Outer Displacement Seal
Seal Material:
LSOH Silicone Seal & LSOH Nylon Washer
Accessories:
PVC Shroud, Earth Tag, Thread Seal, Serrated Washer
Description
We offer a wide range of A1 /A2 Cable Gland that is designed with outer displacement seal. Used for unarmored cables with rubber outer sheath, these are suitable for indoor and outdoor application.
Application : For use with unarmoured cables with rubber outer sheath. Secures outer sheath of cable. Displecement seal concept makes it suitable for Indoor and outdoor application.
Design Features : Compliant to BS EN 62444 : 2013. Outer displacement seal
Product Image
Technical Data
Order Code/Purchase Code:
For Gland Only
Example: 1 H3W 25L 2PT K
– H3W for Series
– 25L for Size
– 2PT for 2 Part
For Gland Kit
Example: H3W 25L 2PT K
– H3W for Series
– 25L for Size
– 2PT for 2 Part
– K for Kit
Kit – Complete Kit (Gland + PVC Shroud + Earthing Tag)
Complete Kit will be packed in Poly Pouch
Description

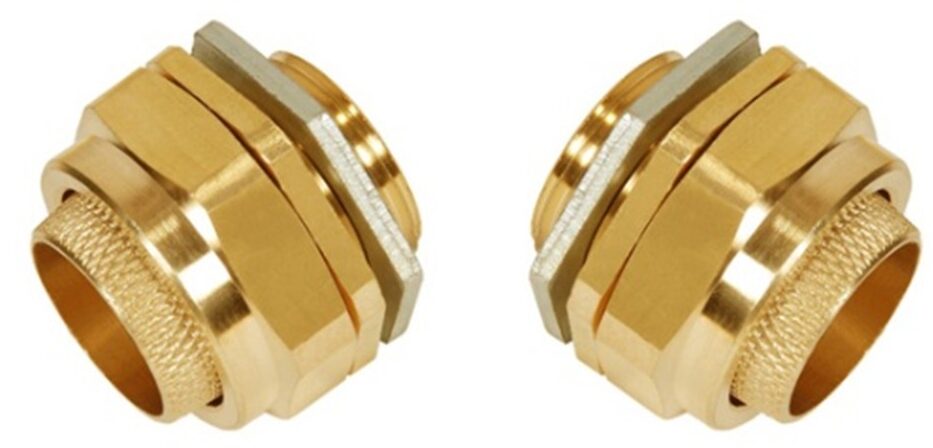

We are engaged in offering BW Cable Gland (2 PART) as per IS 613:2005 standards. And also available in CW3L (ground earthing lugs), these are used with armoured or braided cable. Further, this secure armouring is especially useful where a low level of protection against water is desired for use in dry and indoor condition.
Design Features: 2 part error lock, knurled armour lock produces a low resistance earth clip.
Product Image
Technical Data
Size:
20mm to 90mm
Standard:
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function:
Provides mechanical cable retention & electrical continuity via armoured wire termination in indoor area. It is easy to install.
Ingress Protection:
IP2X
IP66
Material:
Brass CW614N
Thread:
Metric
Features:
Outer Compression Seal
Accessories:
PVC Shroud, Earth Tag, and Serrated Washer
Product Image
Technical Data
Size:
16mm to 90mm & ½” to 3½”
Standard:
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function:
Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection:
IP66
Material:
Brass CW614N, Stainless Steel 316L
Thread:
Metric, NPT
Operating Temp.:
-60°C to +125°C
Cable Type:
Single Wire Armour (SWA) Cable
Seal Material:
LSOH Silicone Seal & LSOH Nylon Washer
Features:
Universal Anyway Clamping Ring, Outer Compression Seal
Accessories:
PVC Shroud, Earth Tag, Entry Thread Seal
Product Image
Technical Data
Size:
16mm to 90mm & ½” to 3½”
Standard:
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function:
Providing environmental seal on the cable outer sheath. Also provides mechanical cable retention & electrical continuity via armoured wire termination in indoor and outdoor area with all types of SWA cable.
Ingress Protection:
IP66
Material:
Brass CW614N, Stainless Steel 316L
Thread:
Metric, NPT
Operating Temp.:
-20°C to +80°C
Cable Type:
Single Wire Armour (SWA) Cable
Seal Material:
Neoprene
Features:
Armoured Ring and Outer Compression Seal
Accessories:
PVC Shroud, Earth Tag, Serrated Washer and Entry Thread Seal
Product Image
Technical Data
Size:
16mm to 90mm & ½” to 3½”
Standard:
BS 6121: Part-1:2005, EN 50262:1999
Application:
For indoor & outdoor use with all types of SWA cable providing environmental seal on both the cable inner & outer sheaths. Also provides mechanical retention & electrical continuity via armour wire termination.
Ingress Protection:
IP66
Material:
Brass CW614N, Nickel Plated Brass, Stainless Steel 316L
Thread:
Metric, NPT
Operating Temp.:
-20°C to +80°C
Cable Type:
Single Wire Armour (SWA) Cable
Features:
Compression Seal and Armored Ring
Seal Material:
Neoprene Seal and Nylon Washer
Accessories:
PVC Shroud, Earth Tag, Serrated Washer, Entry Thread Seal, Adaptor and Reducer
Product Image
Technical Data
Size:
G204 to G755
Standard:
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function:
Provides mechanical cable retention & electrical continuity via armoured wire termination in dry indoor area for all types of SWA cables.
Ingress Protection:
IP2X
Material:
Brass CW614N, Stainless Steel 316L
Thread:
Metric
Operating Temp.:
-60°C to +200°C
Cable Type:
Single Wire Armour (SWA) Cable
Features:
Armoured Ring
Accessories:
PVC Shroud and Earth Tag
Product Image
Technical Data
Size:
16mm to 50mm
Standard:
BS 6121: Part-1:2005, EN 50262:1999, IEC62444:2010
Function:
Recommended for use with braided, co-axial or SWA cables. A rubber seal compresses on cable to provide a tight fit against cable.
Ingress Protection:
IP66
Material:
Brass CW614N
Thread:
Metric
Features:
Outer Compression Seal
Accessories:
PVC Shroud, Earth Tag and Serrated Washer

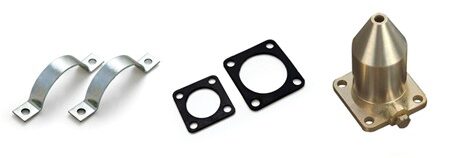

Product Image
Technical Data
Size:
X, Y and Z
Material:
Brass BS 2874
Application:
For use with SWA plastic and rubber (Elastomer) sheathed cables. Used in dry indoor conditions.
Accessories:
Hot Dip Galvanized Mild Steel Clamp, Neoprene Gasket
Product Image
Technical Data
Size:
M10 to M75
Material:
Brass, Chromium Plated
Gland Type:
JIS Standard-8802/8803/F8801
Entry Thread:
BSP
Ingress Protection:
IP66
Application:
For use with all types of unarmoured cable
